The folder contains extender input output modules for use with control units.

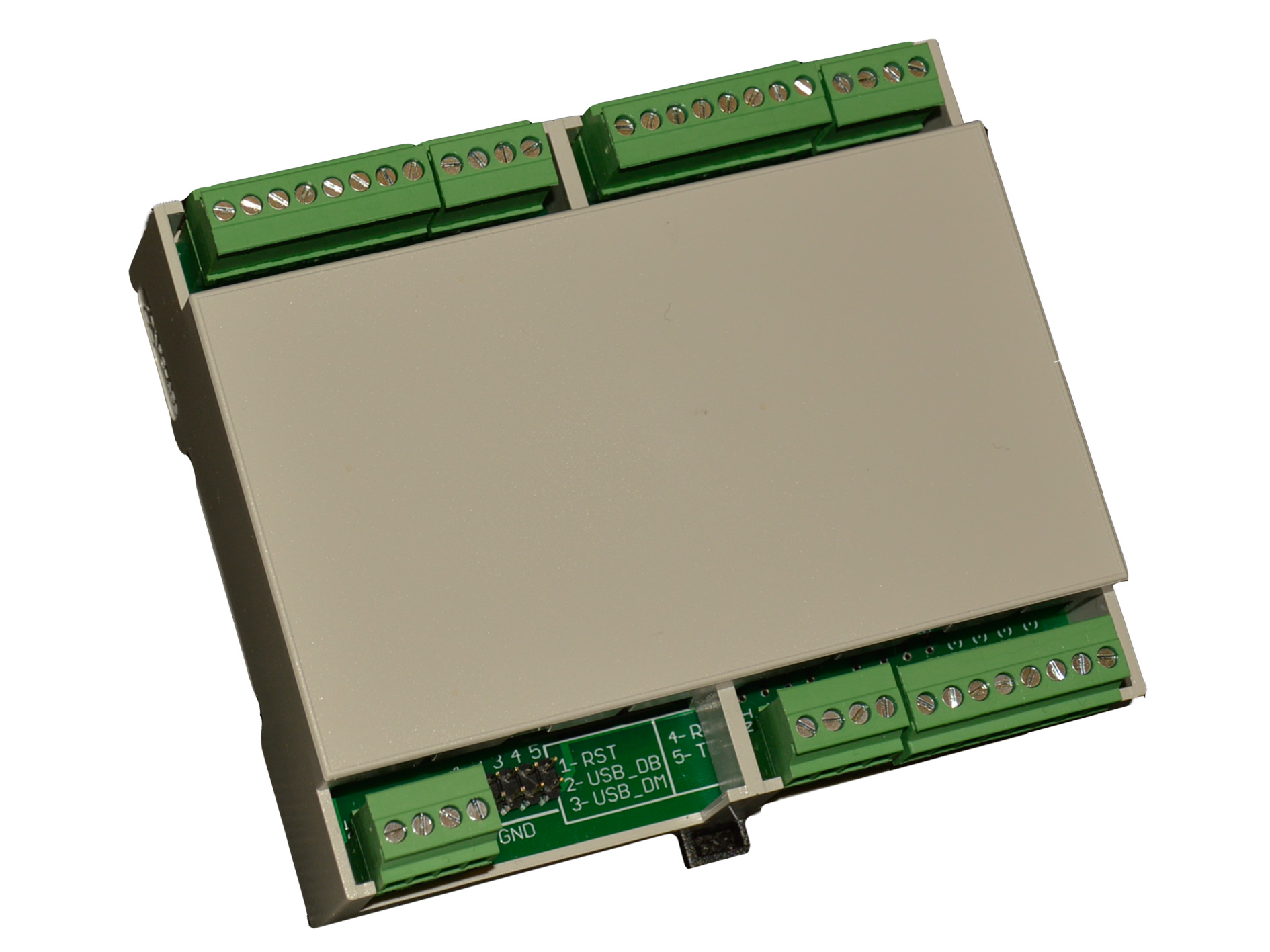

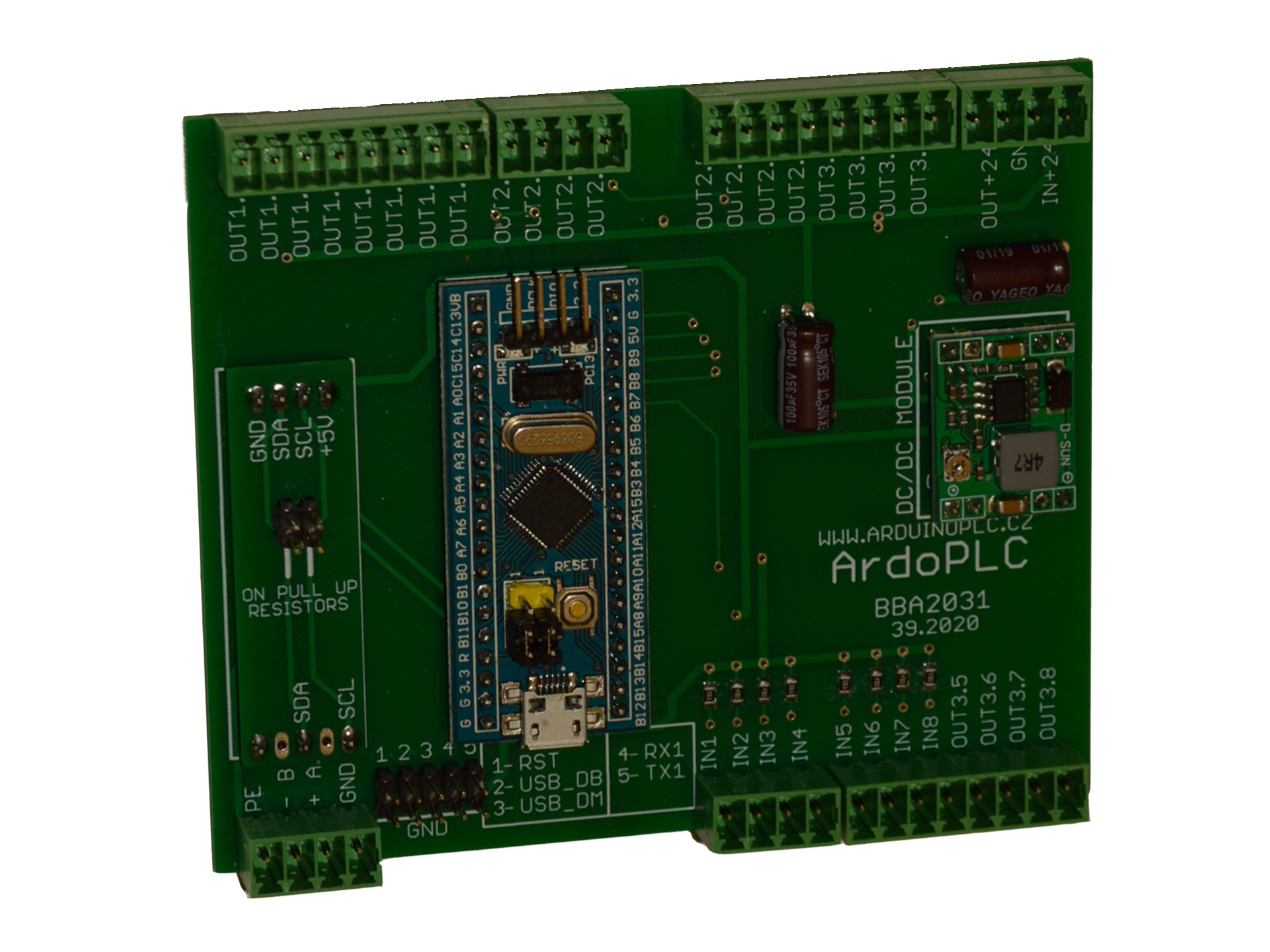

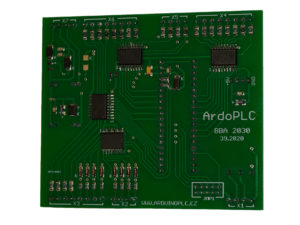

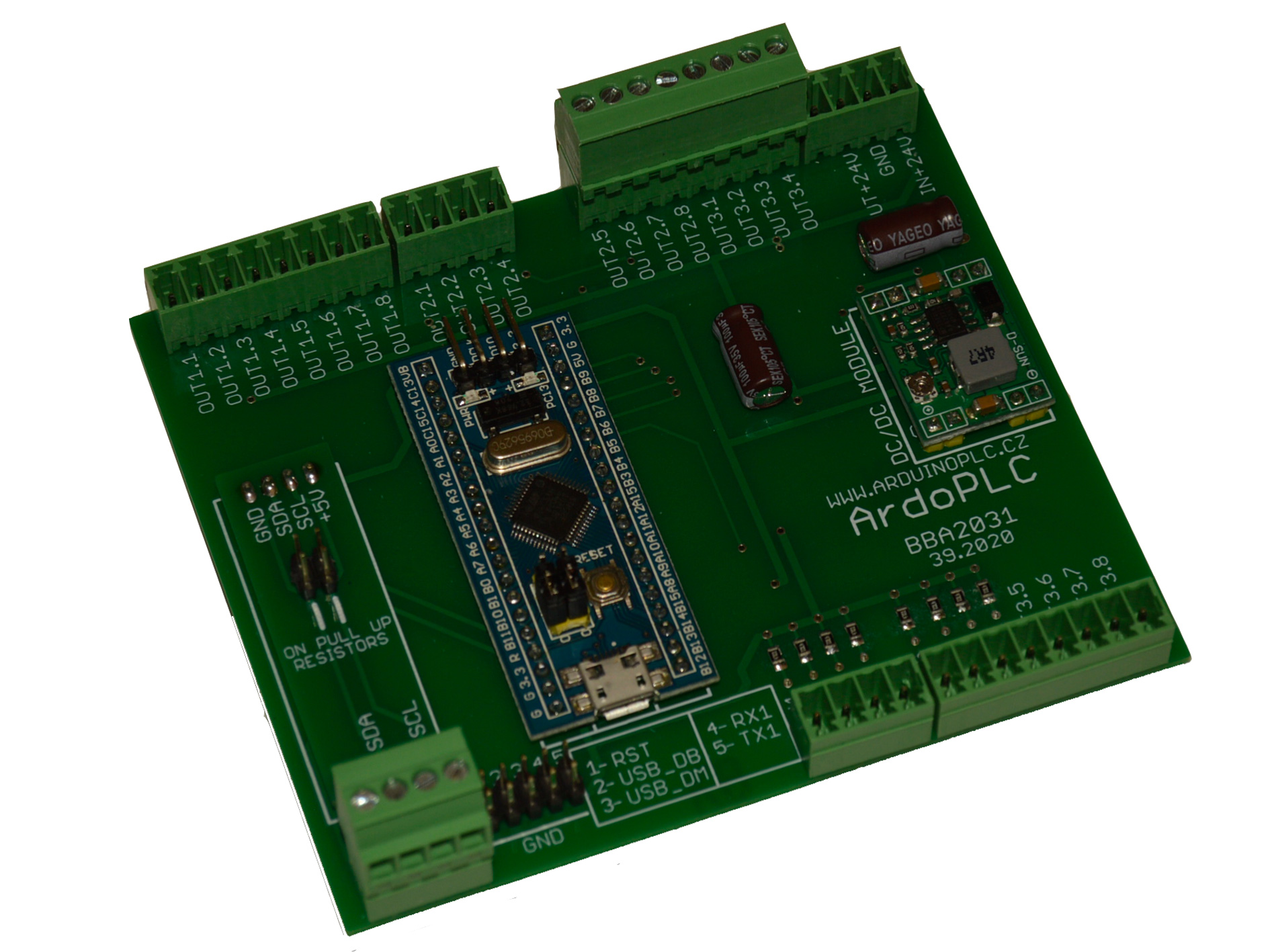

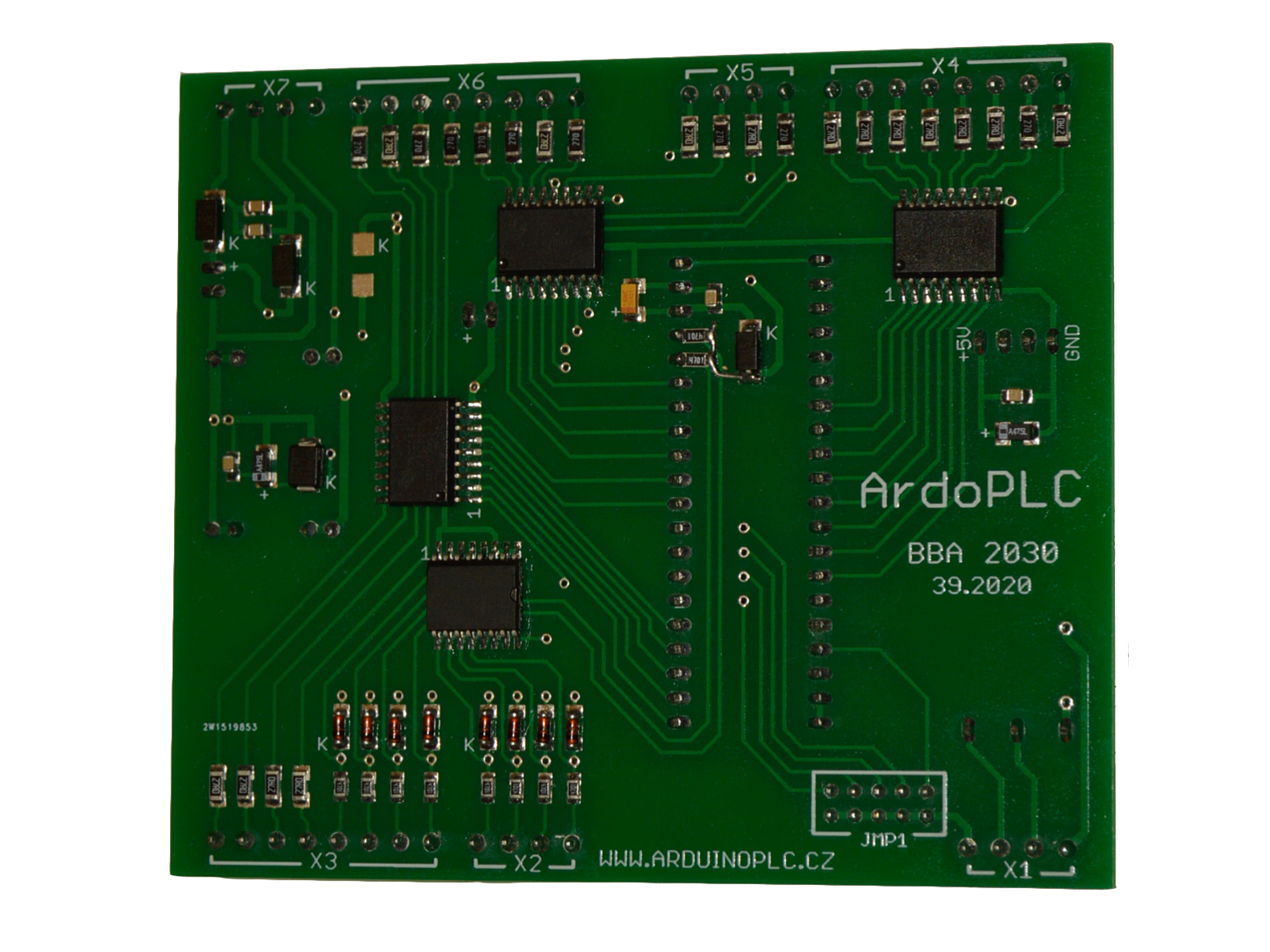

We are currently preparing the BBA 2030 Input and Output module for distribution. The module contains 24 digital outputs and 8 digital inputs. Communication with the module is possible using I2C or RS485 interfaces. It depends on the use of the submodule that is chosen in the production. The module contains the well-known BLUE PILL, seeded with the STM32F103C8 processor. Therefore, implementation of the software should not be a problem for most users of this module. The unit is in the prototype stage. Testing and documentation in progress. We enclose photographs of the prototype to give an idea of the future module.

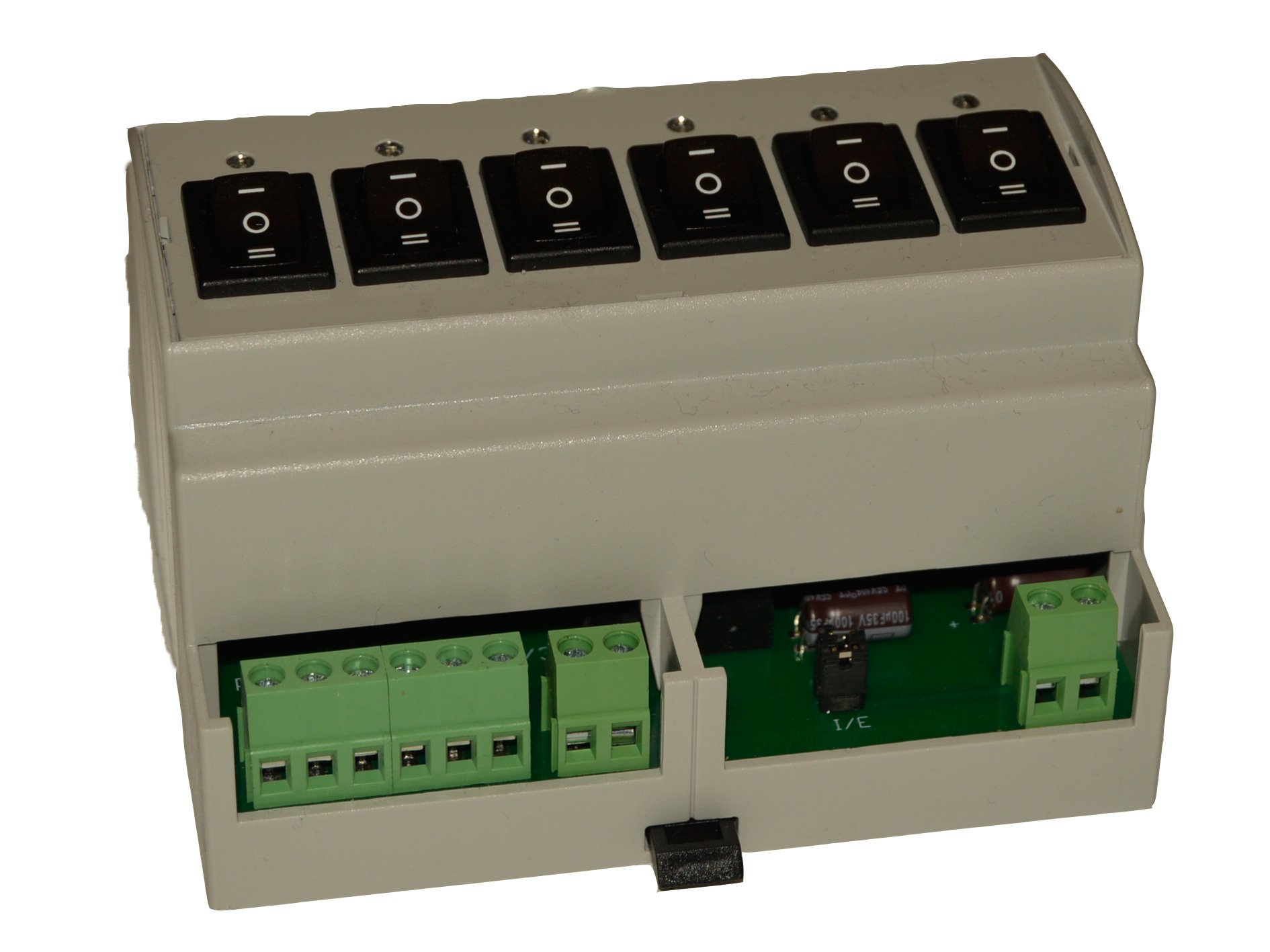

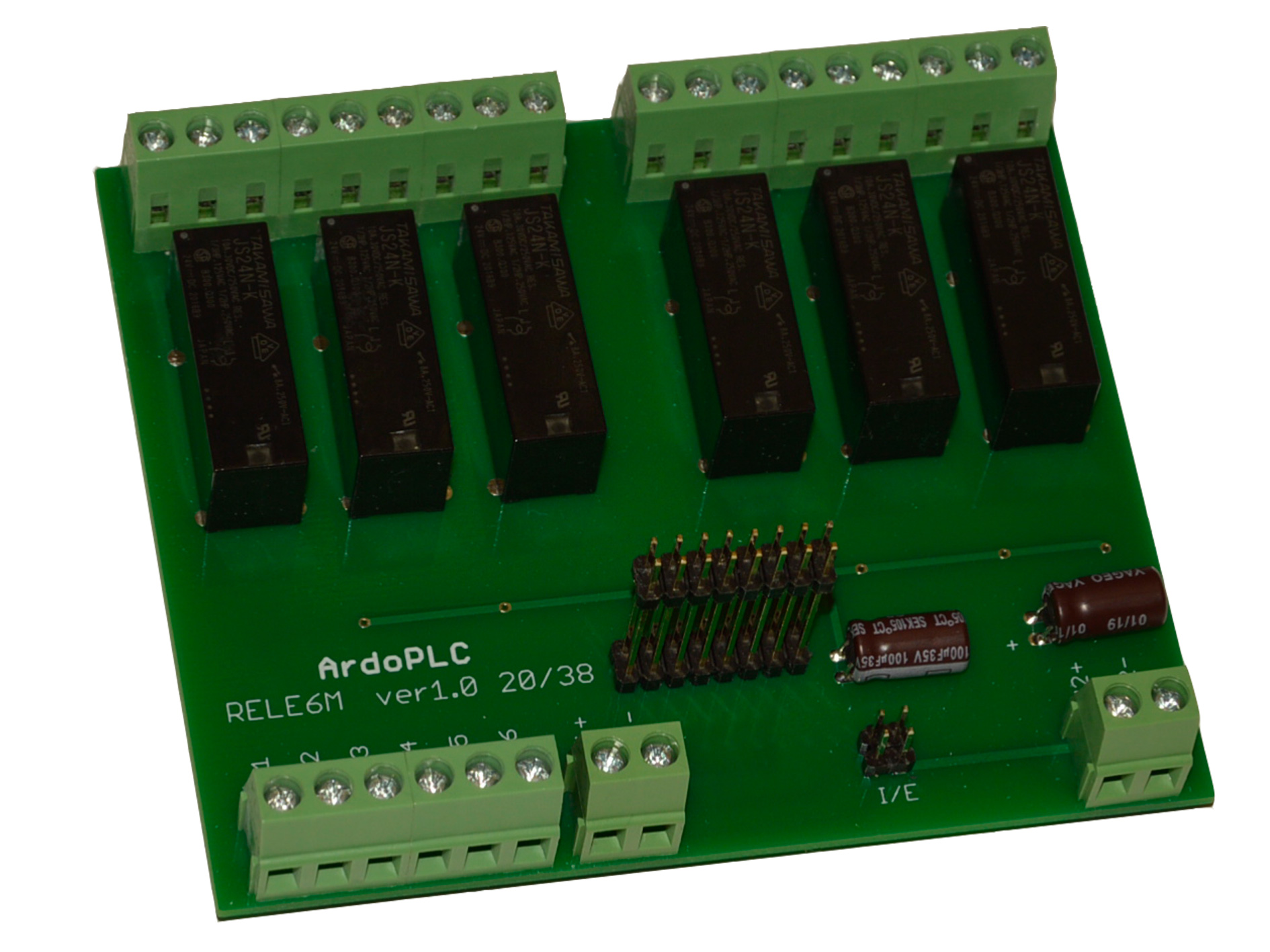

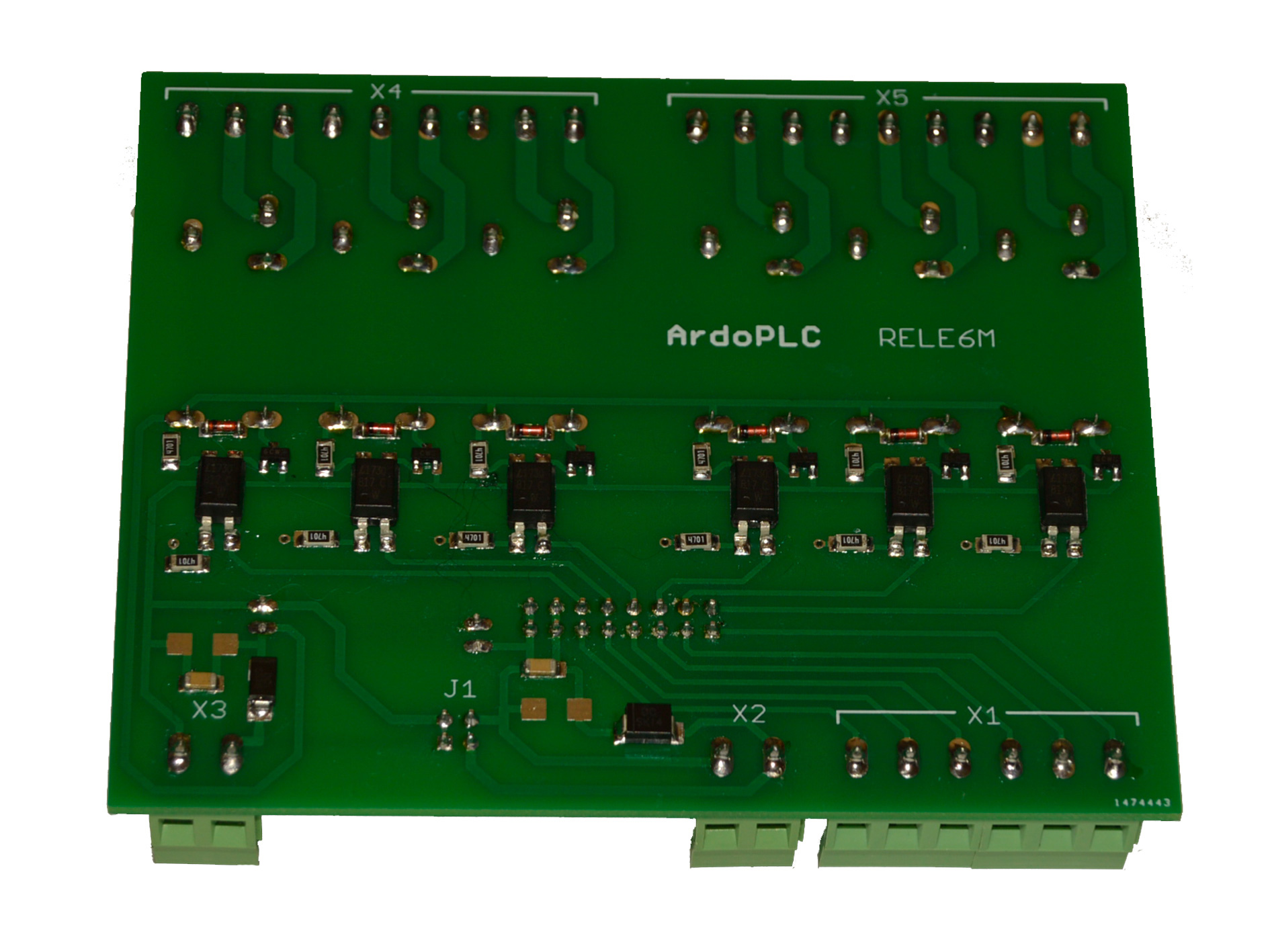

Another module under preparation is the RELE 6M relay output module. The module contains a 6x optically separated relay, with manual control possible. Distinguishes 3 control modes. “AUTOMAT” mode “OFF” and “ON” mode. Automatic mode relay switching is the connection of the relevant input to the “LOW” level. The unit is in the prototype stage. Testing and documentation in progress. We enclose photographs of the prototype to give an idea of the future module.
